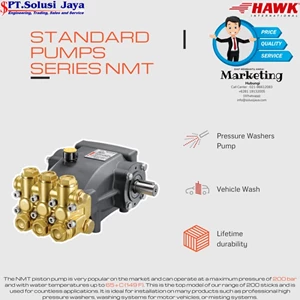

Spesifikasi Pompa Piston NMT Car Wash 200 Bar Series Brand Hawk Made In Italy
Pompa piston NMT-CW dapat beroperasi pada tekanan maksimum 200 bar dan
dengan suhu air hingga 65°C (149 F). Versi ini adalah pilihan yang
sempurna untuk pemasangan pada pencucian mobil swalayan, serta mesin
cuci bertekanan tinggi profesional di mana diperlukan untuk menjamin
masa kerja yang lebih lama, berkat segel khusus dan rumah manifold
berlapis nikel yang menawarkan perlindungan yang ditingkatkan terhadap
bahan kimia.
| Weight | Kg | 10 |
| Oil capacity | lt. | 0.7 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
Part. No.
CODE | Part. No.
CODE | FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF |
| L/MIN | US GPM | HP | KW |
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | °C | °F |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NMT1220SCWL | 1.099-294.0 | 12.5 | 15 | 3.3 | 4 | 200 | 2900 | 1000 | 1200 | 6.4 | 7.7 | 4.7 | 5.7 | 65 | 150 |
|
| NMT1220SCWR | 1.099-295.0 | 12.5 | 15 | 3.3 | 4 | 200 | 2900 | 6.4 | 7.7 | 4.7 | 5.7 | 65 | 150 |
|
| NMT1520SCWL | 1.099-296.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 9.2 | 5.7 | 6.8 | 65 | 150 |
|
| NMT1520SCWR | 1.099-297.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 9.2 | 5.7 | 6.8 | 65 | 150 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| NMT1220CWL | 1.099-298.0 | 12.5 | 15 | 3.3 | 4 | 200 | 2900 | 1450 | 1740 | 6.4 | 7.7 | 4.7 | 5.7 | 65 | 150 |
|
| NMT1220CWR | 1.099-299.0 | 12.5 | 15 | 3.3 | 4 | 200 | 2900 | 6.4 | 7.7 | 4.7 | 5.7 | 65 | 150 |
|
| NMT1520CWL | 1.099-300.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 9.2 | 5.7 | 6.8 | 65 | 150 |
|
| NMT1520CWR | 1.099-301.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 9.2 | 5.7 | 6.8 | 65 | 150 |
|
| NMT1820CWL | 1.099-302.0 | 18 | 21.5 | 4.8 | 5.6 | 200 | 2900 | 9.2 | 11 | 6.8 | 8.1 | 65 | 150 |
|
| NMT1820CWR | 1.099-303.0 | 18 | 21.5 | 4.8 | 5.6 | 200 | 2900 | 9.2 | 11 | 6.8 | 8.1 | 65 | 150 |
|
| NMT2120CWL | 1.099-304.0 | 21 | 25 | 5.5 | 6.6 | 200 | 2900 | 10.7 | 12.8 | 7.9 | 9.4 | 65 | 150 |
|
| NMT2120CWR | 1.099-305.0 | 21 | 25 | 5.5 | 6.6 | 200 | 2900 | 10.7 | 12.8 | 7.9 | 9.4 | 65 | 150 |
|
